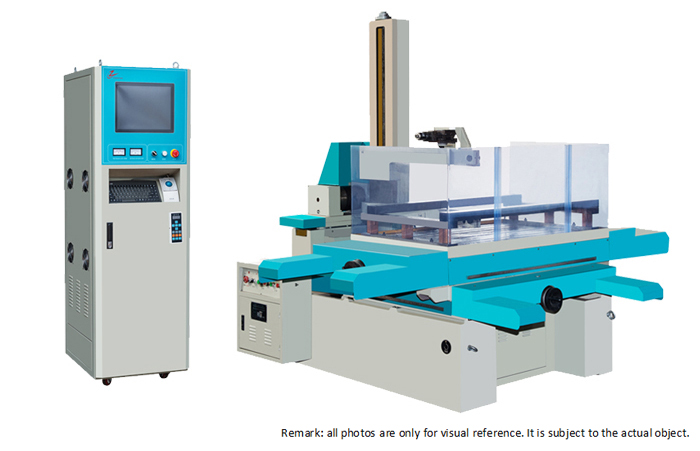

Standard EDM Wire Cut Machine DK-7763
Our Standard EDM Wire Cut Machine DK-7763 is of competitive price, stable quality, energy saving. We do business on base of honesty & profession. We devote ourselves to expand the market in world wide. And we enjoy good reflection from the customers for the machines.
Model:DK-7763
Send Inquiry
Product Description

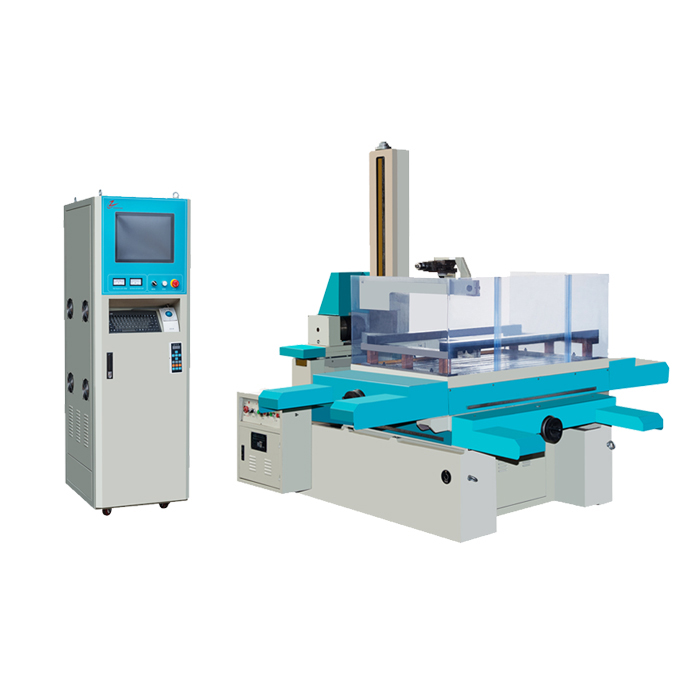

Standard EDM Wire Cut Machine DK-7763
1, Standard EDM Wire Cut Machine DK-7763 Introduction
EDM wire cut machine enjoys good reflection from the customers. Its body is the use of high-strength cast iron forming the base for the machine load-bearing parts. Integral structure, its body is used resin casting technology casting (walking wire on the use of this technology).
2, Standard EDM Wire Cut Machine DK-7763 Parameter (Specification)
| Type | DK-7763 |
| Size of worktable(mm) | 1280*760 |
| Table travel(mm) | 630*1000 |
| Max.workpiece thickness(mm) | 600 |
| Max taper angle(°) | F≤6 G≤60 |
| Diameter of molybdenum wire(mm) | Φ0.10-Φ0.25 |
| Power supply(Hz/V) | 50Hz/220V±10% 50Hz/380V±10% |
| Drive of worktable | 10 pats 5 phase driven by stepmotor |
| Single pulse machining accuracy(mm) | ≤0.001 |
| General machining accuracy(mm) | -0.01 |
| machining speed(mm²/min) | 80-120 |
| Optimal surfing roughness(μm) | Ra≤2.5 |
| Overall power(kw) | ＜3 |
| Weight of machine(kg) | 2800 |
| Max.weight of workpiece(kg) | 600 |
| Machine tool outer diam.size(mm) | 2400*2650*2000 |
3, Standard EDM Wire Cut Machine DK-7763 Feature And Application
It owns the feature & characteristics as follows,
1)automatic cutting tracking real-time retracing and display of machining trace and drawing of contour of workpiece is three dimensional.
2)automatic return of short circuit Power failure protection Automatic recording of machining trajectory Caller recovery
3)arbitrary shutdown End of stage Default program stop
4)check the content of any segment Modifiable Insert delete any program segment
5)automatic return of short circuit Power failure protection Automatic recording of machining trajectory Caller recovery
6)broken wire treatment: Automatic fault detection fuction of the system Automatic interruption of broken wire Go back to the cut point
4, Standard EDM Wire Cut Machine DK-7763 Detail
1)Casting all for casting castingHT200,casting Natural aging
2)X.Y shaft use Ball screw
3)Guideway Ball screw shield use fuii closure
4)Industrial control computer
5)80GHDD 232interface,UBS network card,1G memory
6)Input mode: the standard keyboard, mouse,UBS drive,network transmission
5, Standard EDM Wire Cut Machine DK-7763 Quality Qualification
The equipment according to the enterprise standard implementation. And the enterprise owns rich experience in field ofEDM Wire Cut Machine.
6, Technical and After-sales Service
The supplier the following technical and after-sales service commitment
1) English Technical files provided.
2) Machine tested before the delivery.
3) Technical support online service provided.
4) Consumable parts at reasonable price when replaced.
7, FAQ
1) Delivery time: within 7 days if in stock. It is subject to confirmation.
2) Packing: simple package. It is subject to confirmation.
3) Trade Term: FOB, CFR, CIF, ect. It is subject to confirmation.
4) Default power system: 220V, 50Hz, 1 Phase
Remark:
All the information (including word, photo) above are only for reference. It is subject to confirmation. The company reserves the right to revise all information (including word, photo) above.
