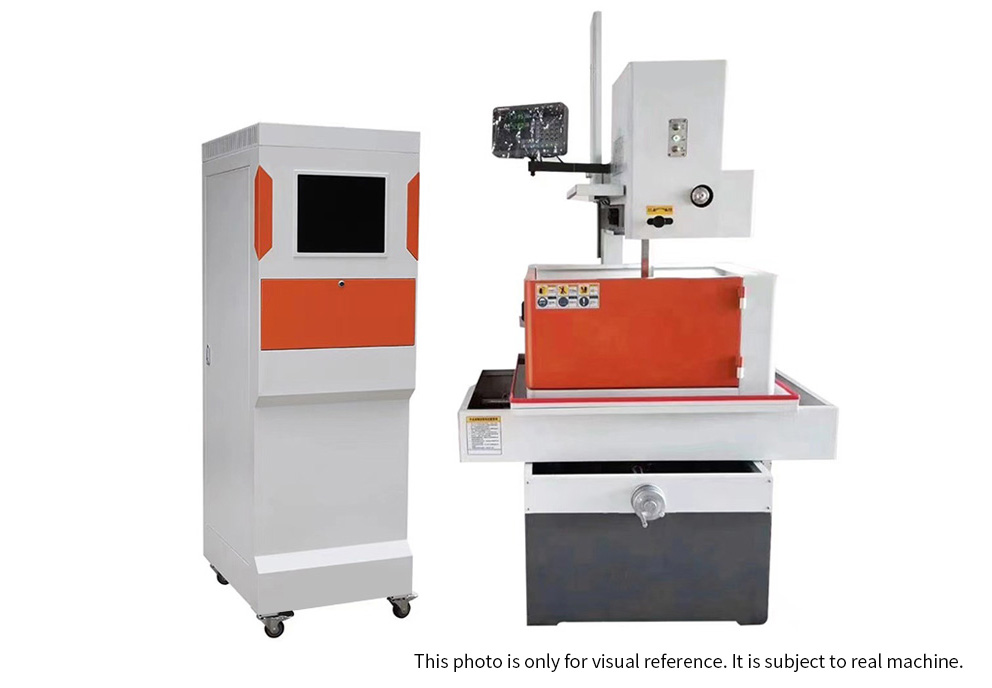

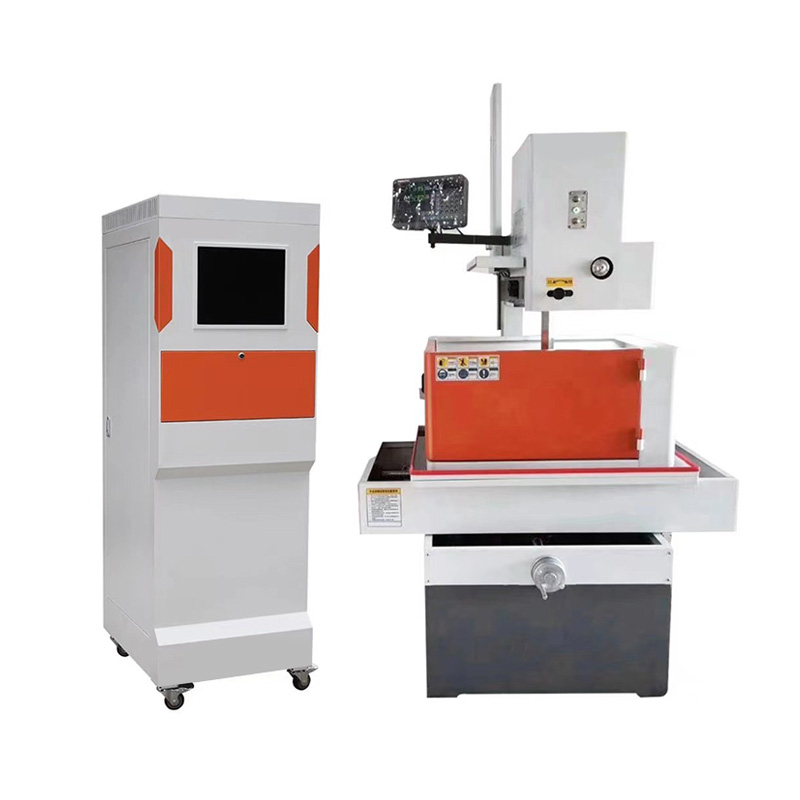

EDM Wire Cut Machine DK7732PB
1, Product Introduction
EDM wire cut machine enjoys good reflection from the customers.
It is made of high-quality gray cast iron, one-year natural thermal aging and high-temperature stress relief annealing to ensure the corrosion resistance, fatigue resistance and no deformation of the machine tool for a long time.
2, EDM Wire Cut Machine Product Parameter (Specification)
0 | Model | DK77732PB |
1 | Working table top size (mm) | 740×520 |
2 | Working table top travel (mm) | 400×320 |
3 | Maximum cutting thickness (mm) (automatically adjustable) | 280 |
4 | Maximum load bearing capacity (kg) | 300 |
5 | Manufacturing Standard | GB7926—87 |
6 | Drive mode | Step by step |
7 | Maximum cutting speed (mm²/ min) | 130 |
8 | Maximum current (A) | 7.5 |
9 | EDM wire diameter (mm) | 0.12-0.20 |
10 | Three-blade cutting efficiency MM/min | ≥80 |
11 | Working fluid | CY-5,Water base fluid |
12 | Working fluid capacity (L) | 60 |
13 | Maximum machining taper | ±3°/80mm |
14 | Power supply voltage | AC three-phase380V/50HZ |
15 | Precision | ±0.005mm |
16 | Machining surface roughness (Three-blade cutting) | Ra≤1.2 |
17 | Power consumption | 2.3KW |
18 | Machine Tool Weight | 1900KG |
19 | Overall dimensions of machine tool | 1400×1150×1850 |
3, EDM Wire Cut Machine Product Feature And Application
It owns the feature & characteristics as follows,
1) Machining objects: cutting of forgings, and cutting machining of forging dies and tooling.
2) Machining materials: mainly including die steel such as 45 #, Cr12MoV, DC53, SKD11, etc.
4, EDM Wire Cut Machine Product Detail
1)The wire rack adopts C-type structure, and the z-axis is silent and automatic lifting
2)wire storage cylinder: it is made of stainless steel. After dynamic and static balance inspection, the wire cylinder operates stably without noise.
3) the guide rail adopts Taiwan Shangyin products
5, Quality Qualification
The equipment according to the enterprise standard implementation. And the enterprise owns rich experience in field of EDM Wire Cut Machine.
6, Technical and after-sales service
The supplier the following technical and after-sales service commitment
1) English Technical files provided.
2) Machine tested before the delivery.
3) Technical support online service provided.
4) Consumable parts at reasonable price when replaced.
7, FAQ
Delivery time: within 7 days if in stock. It is subject to confirmation.
Packing: simple package. It is subject to confirmation.
Trade Term: FOB, CFR, CIF, ect. It is subject to confirmation.
4) Default power system: 380V, 50Hz, 1 Phase
Remark:
All the information (including word, photo) above are only for reference. It is subject to confirmation. The company reserves the right to revise all information (including word, photo) above.
